ADA Height Clear Ice Machine
Model Number TUIADA-15-RS-A~O
Capacity cu. ft.
Dimensions 15" W × 32" H × 24" D
Estimated Lead Time to Authorized DealerRight Hinge - 9 weeks
Left Hinge - 9 weeks
Standard Finish - 13 weeks
Color Match - 20 weeks
Features
Specifications
Downloads
CAD Files
- Articulating, soft close hinge allows fully integrated, flexible installations
- UL-rated for outdoor use
- Unit comes standard with 4 adjustable leg levelers
- Produces up to 75lbs. of clear ice per day with a storage capacity of 28lbs
- 32" height allows for installation under ADA-compliant countertop
- Bin Level Control for entertaining flexibility (50%, 65%, 70%, 85%, 100%)
- Exclusive True Magna Scoop for easy storage on door.
- Automatic cleaning system.
- Concealed digital control located behind toekick.
- Field-reversible hinge allows for flexibility in the field
- Black powder coated steel exterior
- Industry exclusive, standard built-in drain pump
- Environmentally friendly R290 refrigerant
- White LED lighting illuminates your product
Dimensions
14.875" W × 31 7/8" H × 23 7/8" D
Opening Dimensions
15" W × 32" H × 24" D
Electrical
Voltage 115/60/1
Amps 2.85
Power Cord Length
10 ft.
pdf Spec Sheet
- pdf Spec Sheet

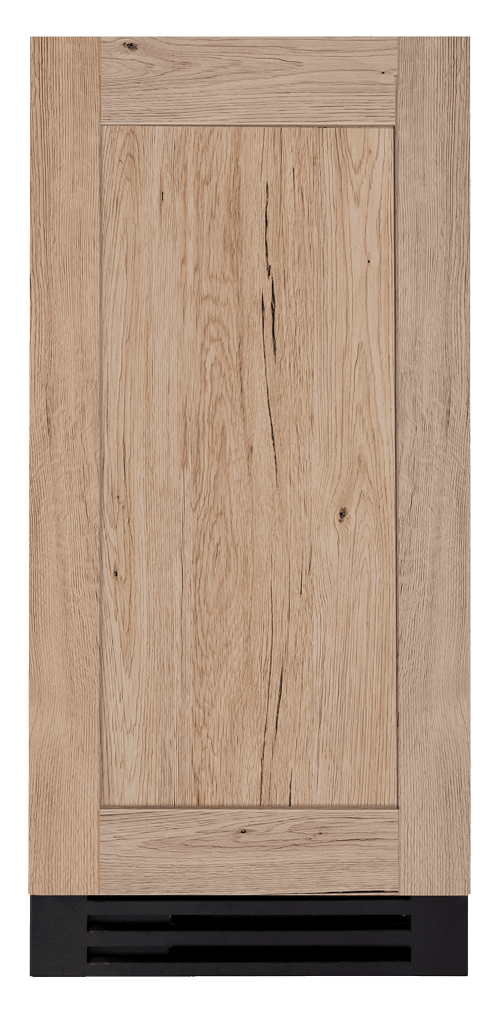

- pdf Overlay Template
- pdf Install / User Guide
